Home /Products/Medical Scalpel Blades/Xacto Industrial Ceramic Ceramic Scalpel Blade

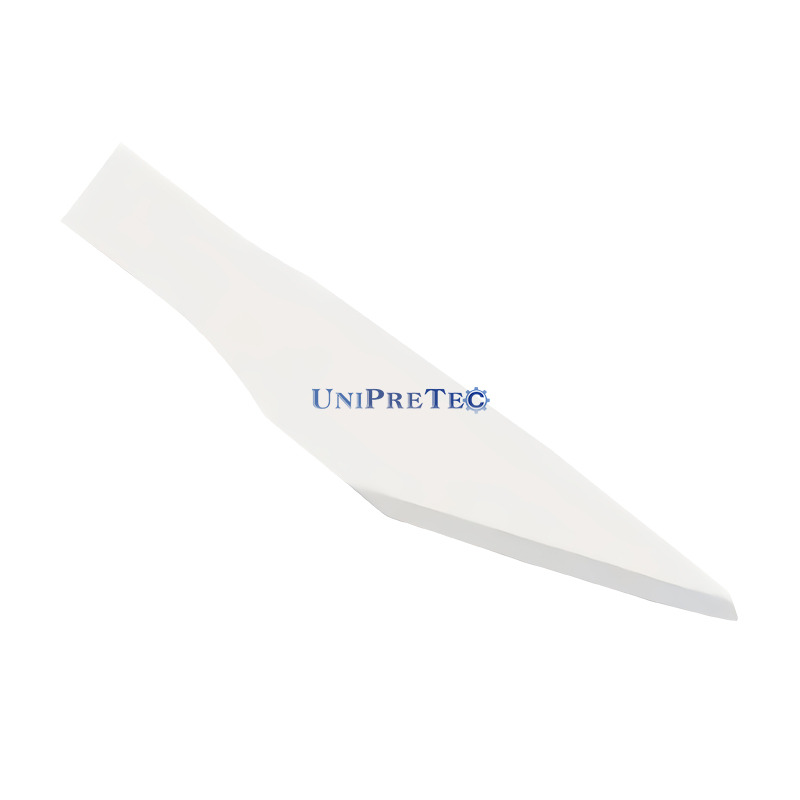

Xacto Industrial Ceramic Ceramic Scalpel Blade

10.0 Pieces
MOQ
Xacto Industrial Ceramic Ceramic Scalpel Blade
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Ceramic Parts
Application: Industrial Ceramic
Material: Zirconia Ceramic
Model Number: Customized
Processing Service: Polishing
Color: White, Black
Density: 5.90 - 6.10 G/cm3
Moh's Hardness: 9
Water Absorption: 0%
Electrical Insulation: Good
Basic Infomation
Model Number: customized
Payment & Shipping Terms
Packaging Details: CARTON BOX
Supply Ability: 5000 Piece/Pieces per Month delivery of customized products is different.
Product Description
Material Introduction
Zirconia Ceramic Blades have the characteristics of high hardness, excellent sharpness, no burrs, low friction coefficient, clean cutting edges, corrosion resistance. On the production line, zirconium oxide blades can not only improve the quality of work, but also improve work efficiency. In the entire industrial process, cutting is a very important process, and in this process, the blades used are generally steel blades, but steel blades have big defects when they are used. In contrast, what are the advantages of ceramic blades made of zirconia? First of all, ceramic blades can reduce resistance when used. We know that in some cutting processes, some blades have a certain amount of application when used, but they are not suitable for use because of large resistance, and the resistance will cause the object to be cut. The pulling force is prone to burrs or other undesirable phenomena, Zirconium dioxide blades are not suitable for cutting thicker and harder materials. However, when zirconia blades are applied to cut thin and soft materials, for example, tape, aluminum film, paper, leather, yarn, nylon wire, fruit, vegetables and meat. They not only have good self-pressure, but also can rotate smoothly. The purpose is not only to achieve good results in cutting, but also to be more suitable for multi-layer cutting, which is also an effect that other blades cannot achieve. Because of the obvious advantages of zirconia ZrO2 blades, they play a very important role in various cutting operations. Of course, according to the field of application of blades, there are many types of zirconia based ceramic blades, such as Utility Blade, Xacto Scalpel Blades, Trapezoid Blade, Safety Blade, Razor Blades, Capsule Cutting Blade and so on.
Product Features
Applications
Material Properties
ITEM
UNIT
Zirconia | YSZ95
Main Content
-
ZrO2 > 94.5%
Color
-
White / Black / Blue / Yellow
Density
g/cm3
5.95
Vickers Hardness
Gpa
12
Flexural Strength
Mpa
800
Compressive Strength
Mpa
2,500
Electrical Resistivity
Ω·cm
>1010
Dielectric Strength
KV/mm
9
Dielectric Constant
1 MHz
28
Thermal Conductivity
W/m.K
2.2
Max. Working Temperature
℃ / °F
800 / 1,470
Resistance to Thermal Shock
△T(℃)
260
Thermal Expansion Coefficient (25 - 1,000 ℃)
10-6/K
11 - 13
About Us
UNIPRETEC is a representative technical ceramic company in China. Relying on the technical team with more than 10 years of experience and the cooperation of well-known domestic colleges and institutions, our company covers the manufacturing and sales of oxide, nitride and carbide ceramic products. Based on the research in the advanced ceramic industry, our company is good at providing suitable products and suggestions flexibly according to customers' applications and needs. For many years, our company has focused on meeting the needs of customers from all over the world. Many praises from customers and partners have been encouraging UNIPRETEC to move forward and develop.
"Simple things into very complex, can find new areas; Read the complex phenomenon is very simple, can be found that the new law." - - - - - -Isaac Newton
