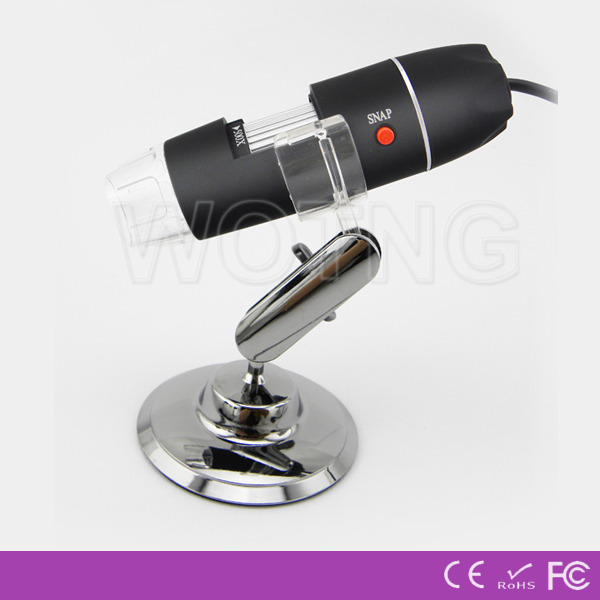

Microscope/Digital Microscope/Industrial Specialized Microscope :
| Model No. | U2M800X |
| Description | Digital USB Microscope |
| Main Function: | 1. Magnify and real time display images on PC 2. Take videos and images 3. Measure size of the object |
| Image Sensor: | 2.0 Mega Pixels |
| Still Capture Resolution: | 1600x1200 (2M), 1280x960, 480*360,640*480 |
| Video Capture Resolution: | 1600x1200 (2M), 1280x960, 480*360,640*480 |
| Focus Range: | Manual focus from 10mm to 40mm |
| Frame Rate: | 30f/s Under 600 LUX Brightness |
| Magnification Ratio: | 40X-800X |
| Video Format: | AVI |
| Photo Format: | JPEG, BMP,JPG |
| Light Source: | 8 LED (adjustable by control wheel) |
| PC interface: | USB 2.0 & USB 1.1 compatible |
| Operation System: | Windows XP/Vista/Win7, Mac OS X 10.6 or above |
| OSD language: | English, Chinese, others to be customized |
| Bundle software: | Cooling Tech |
| Product Size: | 117mm (L) x 33mm (R) |
| Weight: | 310g |
| Power Supply: | USB(5V DC) |
| Package Contents: | 1. Microscope 2. Mental stand 3. CD(software & User Manual) 4. Calibration Ruler |
| Packaging Information: | Each unit in gift box 20pcs/carton Carton Weight:6.7kg Carton Size: 46.5(L)*31.5(W)*33(H) CM |
| Warranty: | One Year |
| Certificates: | CE, FCC approval, RoHS compliance |
Packing for Digital USB Microscope
Qualification certificates
Patent Certificate from Intellectual Property Office of China
Usage introduction
Thank you for visiting our page of our Digital Microscope,
it is a slim type tool and can be easily used in different fields
including:
1. Textile industrial for textile inspection
2. Printing inspection
3. Industrial inspection: PCB, Precision machinery…
4. Educational purpose
5. Hair examination
6. Skin examination
7. Microbiological observation
8. Jewelry & coin (Collections) inspection
9. Visual Assistance
10. Others
Currently we have two models of USB Microscope: USB port and TV port formats.
The USB microscope must be connected to the computer and TV microscope
be connected to visual device (N/P). User interface is very friendly and you can
do the Measure work easily.
Product Outlook & Standard parts
1. Digital Microscope (1pcs)
2. USB 2.0 cable
3. Metal fixed Stand (1pcs)
4. CD ROM (Driver, Measurement software, User Manual)
Hardware system requirements
Windows 2000,XP,VISTA,WIN7 Pentium 1G, Celeron, AMD 1G &
above, 128MB Memory, 150MB Hard Disc memory space,16-bit &
above VGA ,CD-ROM, USB2.0 or USB1.1.
How to install the Driver
This Digital Microscope is a free Driver Product,it can be worked
immediately after connected to the computer with operation system above
win2000 version.
1. Connect the Portable digital microscope by USB2.0 cable to your
computer, double click ‘my computer’ icon on your computer desktop,
below interface will be shown up.
2. Double click the Video device icon as above red marked in your
computer. Now it is ready to use.
If you can’t find the Video device, or if your computer can’t recognize it,
please follow below steps to install the driver.
Insert the attached CD, system will auto run to the interface as below and
follow the steps to complete the installation:
(NOTE:If the computer can’t auto run the disc, you need to operate manually by click “My Computer” → ”DVD/CD Driver” →run "AUTORUN.EXE" )
1. Driver installation
Click to continue, the screen will show the installation progress.
Click "next" "continue Anyway" "Finish".
And then Select ’Yes, I want to restart my computer now’, and click “finish”.
After restart your computer, Plug-in the USB port of Digital Microscope
into Computer USB port. Following the user guide by steps and complete
by click “Next” -> “Continue anyway” -> “Finish”.
2 Measurement installations
Click install, Click “next” to continue, then Click “Install”.
Wait a few seconds while the installation taking place.
Click "Finish" at last and the installation completes.
After the installation completes, double click at computer desktop to start using the software.
