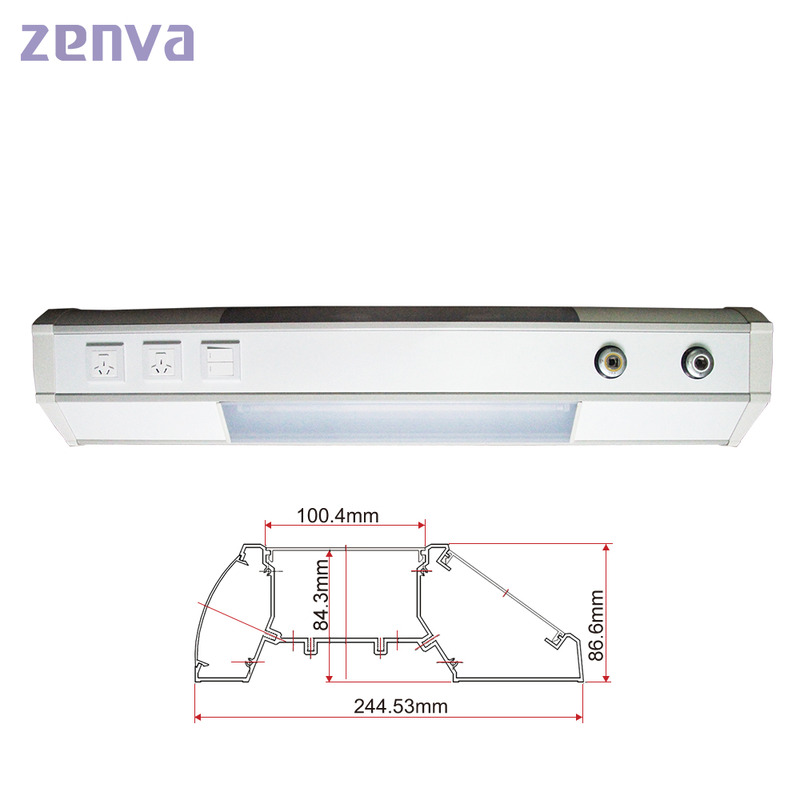

Common Configuration for BH-MEX003 |
|
|
Model |
BH-MEX003 |
|
Length |
1000mm |
|
Width |
244 mm |
|
Height |
86mm |
|
Material |
Aluminum Alloy |
|
Accessories |
Gas outlet: 3 pcs (O2*1, VAC*1, AIR*1), Electrical Sockets: 2 pcs, Down Lamp/Lamp Cover/Lamp Switch |
|
Packing size (one Carton Box) |
1120*280*140mm 6.5 KGS for 1000mm Length |
|
Wooden Case Optional |
|
Product Description:
1. Smooth surface guarantees cleanliness, also while disinfecting the products
2. The length of BHU can be customized as per customers' request
3. The location of gas and electrical components are designed as per customer's requirements
4. Wall section is made of extruded aluminium.
5. Extruded aluminium structural lower channel includes a vertical integrate equipment mounting track to support optical track mounted equipment
6. Optional equipment like I.V. hook, infusion pole, utility basket, monitor tray and others can be installed into the track Gas outlets/switch-socket monitor socket/nurse call system
7. Can be custom fitted based on the customer’s requirement.
|
Name |
Medical Bed head unit |
|
Installing |
Mounted wall Horizontal |
|
Material |
Aluminium alloy |
|
Length |
Universal 1.0m ,but 1.2m.1.4m,1.6m 2.0m and so on |
|
Technical |
Surface with static electricity painting |
|
Appearance |
Beautiful and wear-resistant, easy to clean |
|
Structure |
three cavities for different pipelines,Separate the electric with the gas outlets.Safe and reliable |
|
Gas outlets |
O2,Vacuum,Air,N2O,CO2,AGSS,etc.according to different requirement With different standards.like British/french/South African/American/German,etc. |
|
Electrical Sockets |
DIN/BS/Afnor/American Standard Optional |
|
Size |
Different model ,the size is different |
| Test |
All the gas outlets pass 100% air tightness test (if need our gas outlets) |
|
Use |
Supply the gas outlets,power sockets,etc in the hospital. |
|
Optional equipment |
head lamp,reading lamp and other lamp,communicate system(RJ15,RJ45) and some sockets. |
|
Notice |
Requirement different specification , price will be different |
| Accessories Optional | |||
|
Lamp with lamp switch and cover |
RJ 45/RJ15 |
||
|
Nurse call extension |
Monitor tray |
||
Bed Head Unit Production Progress
Other Models Optional:
Feedback Installation from our Customers all over the world, they like our equipments.
